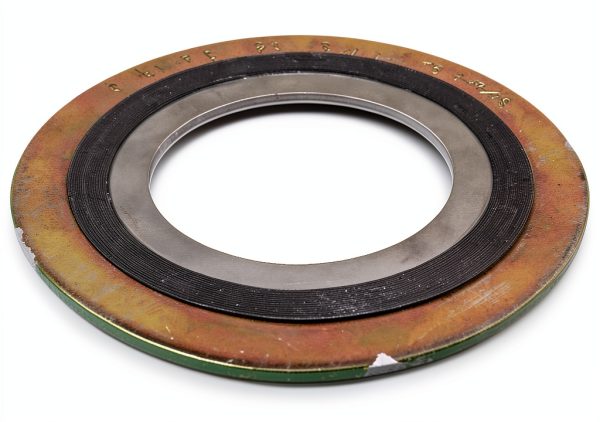

Spiral Wound Gasket Sterling Seal 9000IR8316GR300 8″ Pipe 300# 316SS

Description

Product Overview

The Sterling Seal and Supply, Inc. Spiral Wound Gasket model 9000IR8316GR300 is a premium sealing solution designed for high‑pressure industrial applications. Constructed with a 316 stainless steel inner ring, the gasket offers exceptional corrosion resistance and structural integrity, while the flexible graphite filler provides excellent compressibility and thermal conductivity. This combination ensures a reliable seal across a wide temperature range of -150°F to 850°F, making it suitable for both cryogenic and high‑temperature environments. The gasket conforms to ASME B16.20 standards for Class 300 flanges, guaranteeing compatibility with a broad spectrum of pipe sizes, including the 8″ nominal pipe size specified in the product data. Its spiral wound construction delivers uniform pressure distribution, reducing the risk of leakage and extending the service life of the flange assembly. The product dimensions of 15 x 11 x 0.5 inches and a weight of 1.8 pounds facilitate easy handling and storage.

Usage

This gasket is ideal for use in hydraulic and pneumatic systems where reliable sealing is critical. It performs exceptionally well in chemical processing plants, oil and gas refineries, power generation facilities, and water treatment installations. The 316 stainless steel inner ring resists aggressive media such as acids, alkalis, and saline solutions, while the graphite filler accommodates thermal expansion and contraction without compromising seal integrity. Installers will find the gasket straightforward to position thanks to the centering ring, which accurately locates the gasket on the flange face and acts as a compression limiter. The design supports quick assembly and disassembly, reducing downtime during maintenance. Whether the application involves high‑pressure steam, chilled water, or aggressive chemicals, this spiral wound gasket delivers consistent performance.

Why Choose Us

Choosing Sterling Seal means selecting a partner with decades of experience in sealing technology. Our spiral wound gaskets undergo rigorous quality control processes, including dimensional verification, material testing, and pressure testing, to ensure each unit meets or exceeds industry standards. The use of premium 316 stainless steel and high‑grade graphite reflects our commitment to durability and reliability. Additionally, we provide comprehensive technical support, offering guidance on proper installation, torque specifications, and maintenance best practices. Our after‑sales service includes prompt response to inquiries, availability of replacement parts, and access to detailed product documentation. By investing in our gasket, customers benefit from reduced leak incidents, lower total cost of ownership, and confidence in the longevity of their equipment.

Key Features

• Premium 316 stainless steel inner ring delivers superior corrosion resistance for harsh industrial fluids.
• Flexible graphite filler provides excellent compressibility, ensuring a tight seal across temperature extremes.
• Spiral wound construction distributes pressure evenly, minimizing flange wear and extending service life.
• Centric ring design simplifies installation and acts as a compression limiter for consistent torque application.
• Dedicated technical support and fast after‑sales service give you confidence throughout the product lifecycle.

FAQ

What flange sizes are compatible with this gasket?

The gasket is designed for 8″ nominal pipe size flanges and conforms to ASME B16.20 for Class 300 pressure ratings, making it compatible with a wide range of standard flange dimensions.

Can this gasket be used with corrosive chemicals?

Yes. The 316 stainless steel inner ring resists many aggressive chemicals, including acids, alkalis, and saline solutions, while the graphite filler tolerates chemical exposure without degradation.

What is the maximum operating temperature?

The gasket is rated for continuous operation up to 850°F, and it can also handle cryogenic temperatures down to -150°F, covering most industrial temperature requirements.

How does the centering ring improve installation?

The centering ring accurately positions the gasket on the flange face, ensuring even compression and preventing misalignment, which reduces the risk of leaks and simplifies the tightening process.

What warranty or support does Sterling Seal provide?

We offer a standard warranty covering material defects and provide ongoing technical assistance, including installation guidance, torque recommendations, and rapid response to any service inquiries.
