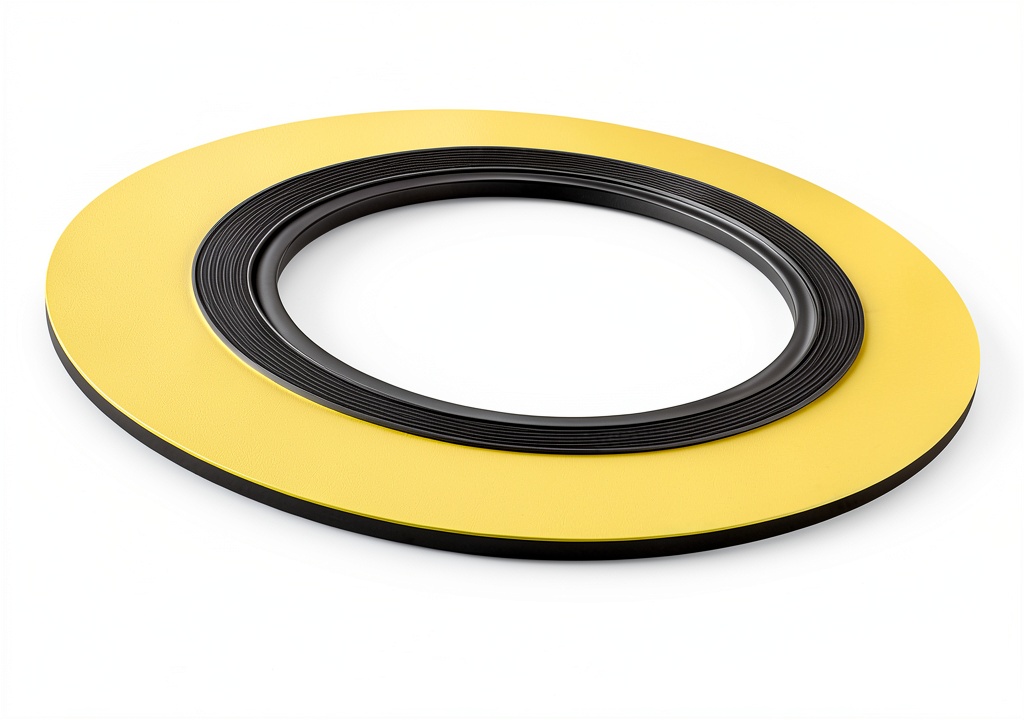

The Sterling Seal 90001304GR150X24 is a precision‑engineered spiral wound gasket designed for demanding industrial applications. Constructed from 304 stainless steel, the outer layers provide exceptional corrosion resistance and structural integrity, while the flexible graphite filler core offers superior compressibility and thermal conductivity. This combination ensures a leak‑free seal even under fluctuating temperatures and high pressures up to class 150. The gasket conforms to ASME B16.20 identification markings, guaranteeing compatibility with a wide range of flange standards. Its yellow body with a distinctive grey stripe aids quick visual identification during installation and maintenance, reducing downtime and the risk of mis‑placement.
Usage
Designed for 1″ pipe connections, this gasket excels in hydraulic and pneumatic systems where reliability is paramount. It is commonly employed in heat exchangers, boiler hand holes, and manholes, where high‑temperature, high‑pressure conditions are routine. The flexible graphite filler accommodates differential expansion between mating flanges, preventing flange erosion and inward buckling. Installation is straightforward: ensure flange faces are clean, apply appropriate bolt lubrication, and fully compress the gasket to its guide ring if present. The gasket’s robust construction also makes it suitable for chemical processing equipment, oil and gas pipelines, and marine applications where exposure to corrosive media is a concern.
Why Choose Us
Choosing Sterling Seal means selecting a product backed by decades of engineering expertise and rigorous quality control. Each gasket undergoes meticulous inspection to verify dimensional accuracy, material composition, and compliance with industry standards. Our manufacturing process incorporates advanced spiral winding technology that ensures uniform layer distribution, delivering consistent performance across every unit. The inclusion of flexible graphite filler not only enhances sealing efficiency but also extends the service life of the gasket, reducing the frequency of replacements and overall maintenance costs.
Our commitment to customer satisfaction extends beyond the point of sale. We provide comprehensive technical support, including installation guidance, material compatibility advice, and troubleshooting assistance. In the unlikely event of a performance issue, our responsive after‑sales team coordinates rapid resolution, offering replacement parts or expert consultation as needed. This dedication to service underscores our reputation as a trusted supplier in the industrial sealing market.
Environmental responsibility is integral to our product development. The 304 stainless steel used in the outer layers is fully recyclable, and the graphite filler is sourced from sustainable suppliers. By selecting our gasket, customers contribute to greener operations without compromising on performance or durability.
Key Features
- Durable 304 stainless steel construction resists corrosion and extends service life.
- Flexible graphite filler adapts to thermal expansion, maintaining a tight seal.
- Designed for 1″ pipe flanges, pressure class 150, suitable for high‑temperature environments.

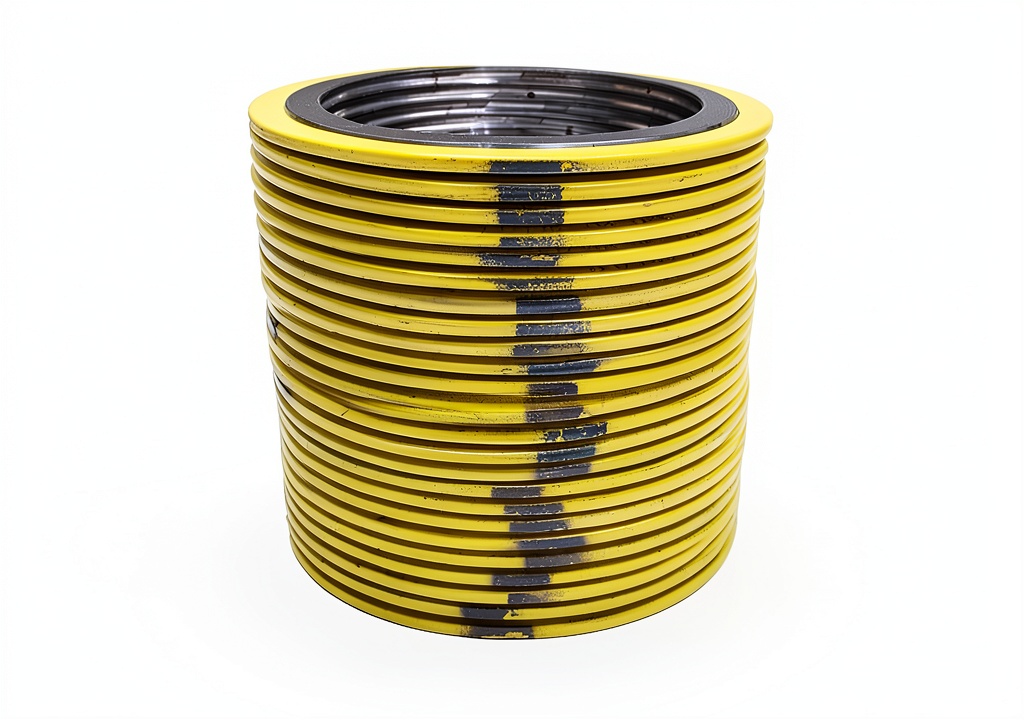

- Yellow body with grey stripe provides easy visual identification during installation.
- Comprehensive technical support and after‑sales service ensure reliable operation.
FAQ
What pressure rating does this gasket support?
The gasket is rated for pressure class 150, making it appropriate for most hydraulic and pneumatic systems operating up to 150 psi at standard temperature ranges.
Can this gasket be used with non‑stainless steel flanges?
Yes, the gasket’s flexible graphite core accommodates a variety of flange materials, including carbon steel and alloy steel, provided the flange faces are clean and properly prepared.
How should the gasket be stored to maintain its performance?
Store the gaskets in a dry, temperature‑controlled environment away from direct sunlight and chemicals. Keep them in their original packaging until installation to prevent contamination.
Is bolt lubrication required during installation?
Applying a suitable bolt lubricant is recommended to achieve uniform torque distribution and to prevent galling, especially in high‑pressure applications.
What warranty does Sterling Seal offer on this product?
We provide a limited one‑year warranty covering material defects and manufacturing errors, ensuring confidence in the gasket’s quality and performance.
