Description
Product Overview

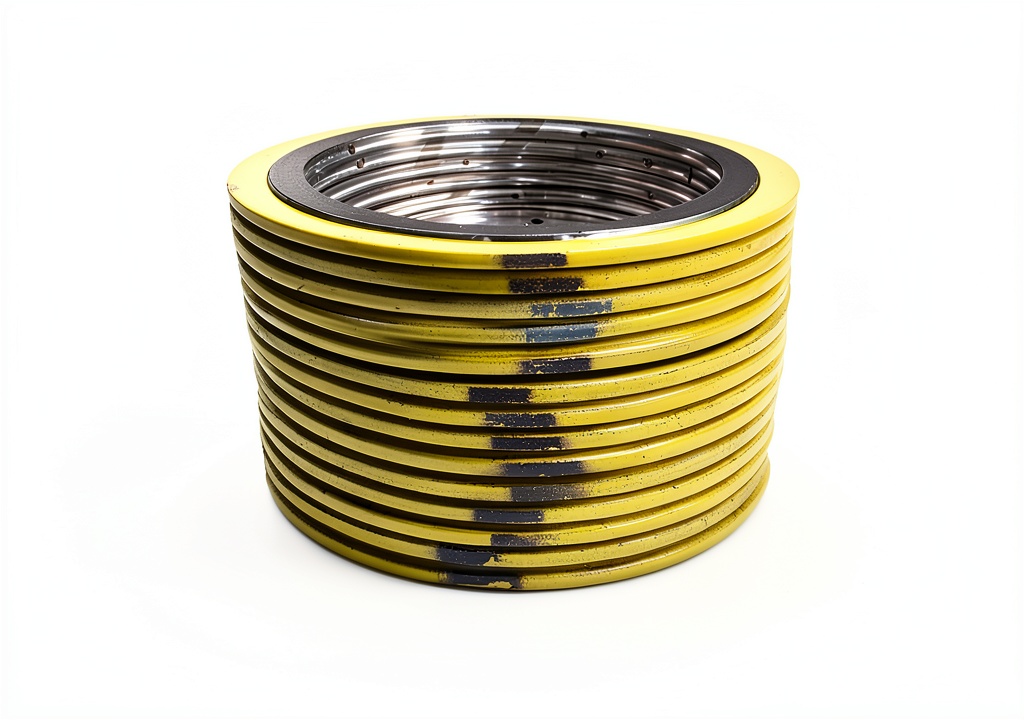

The Sterling Seal Spiral Wound Gasket SSI90001500304GR150X12 is a precision‑engineered sealing solution designed for flat and raised face flanges. It features 304 stainless steel windings that provide excellent corrosion resistance and mechanical strength, while the graphite filler offers superior compressibility and thermal conductivity. The carbon steel outer ring adds structural rigidity, ensuring the gasket maintains its shape under high pressure and temperature cycles.
Each gasket is manufactured to meet ASME B16.20 identification markings, guaranteeing consistent quality and performance across all units. The spiral wound construction combines the flexibility of the filler material with the durability of the metal windings, creating a seal that can accommodate slight flange imperfections without compromising integrity. This design also helps reduce turbulent flow, improving system efficiency and extending equipment life.
With a pressure class of 150 psi and a 2.125″ ID for 1‑1/2″ pipe applications, the gasket is suitable for a wide range of industrial processes. The pack of twelve provides ample supply for multiple installations or replacement cycles, making it a cost‑effective choice for facilities that require reliable sealing components on a regular basis.
Key specifications include a package dimension of 6 × 6 × 6 inches and a weight of approximately 6 pounds per pack. The product was first made available on March 15, 2017, and has since earned a strong reputation within the industrial and scientific market segment, ranking #28 in the Spiral Wound Gaskets category on major e‑commerce platforms.
Manufactured by Lamons, a trusted name in sealing technology, this gasket benefits from rigorous quality control processes. Each unit undergoes thorough inspection to verify dimensional accuracy, material composition, and compliance with industry standards. The result is a high‑performance gasket that delivers consistent sealing performance even in demanding environments.
Usage
This gasket excels in high‑temperature, high‑pressure applications such as heat exchangers, boiler hand holes, and manholes. Its ability to withstand temperatures up to 600 °F makes it ideal for processes involving steam, hot water, or aggressive chemicals. The graphite filler’s thermal stability ensures the seal remains effective even when exposed to rapid temperature fluctuations.
In hydraulic systems, the gasket provides a reliable barrier against fluid leakage, protecting both equipment and personnel. Its spiral wound design accommodates slight misalignments between flange faces, reducing the risk of flange erosion and inward buckling during operation. This flexibility also simplifies installation, as the gasket can conform to minor surface irregularities without losing sealing capability.
For manufacturers of industrial machinery, the gasket offers a dependable solution for maintaining system integrity across a variety of operating conditions. Whether used in continuous production lines or periodic maintenance shutdowns, the gasket’s durability and repeatable performance help minimize downtime and maintenance costs.
Installation best practices include fully compressing the gasket to the guide ring, ensuring clean and undamaged flange faces, and selecting appropriate bolting materials. Applying bolt lubrication can further enhance sealing performance by reducing friction and allowing even torque distribution across the flange assembly.
Why Choose Us
Choosing Sterling Seal means selecting a product backed by decades of engineering expertise and a commitment to quality. Our gaskets are produced in controlled environments using state‑of‑the‑art equipment, guaranteeing uniformity and adherence to strict tolerances. This level of precision translates into longer service life and reduced risk of unexpected failures.
We stand behind every gasket with comprehensive technical support and responsive customer service. Our team of specialists is available to assist with product selection, installation guidance, and troubleshooting, ensuring that you achieve optimal performance in your specific application.
Our supply chain reliability ensures that you receive the exact quantity you need, when you need it. The 12‑pack configuration is designed to streamline inventory management, reducing the need for frequent reordering and minimizing storage space requirements.
In addition to product quality, we prioritize sustainability by implementing environmentally responsible manufacturing practices. Materials are sourced from reputable suppliers, and waste reduction initiatives are integrated throughout the production process, aligning with industry standards for ecological stewardship.
Key Features
- 304 stainless steel windings provide excellent corrosion resistance and strength.
- Graphite filler offers superior compressibility and thermal conductivity for high‑temp applications.
- Carbon steel outer ring adds structural rigidity, maintaining seal integrity under pressure.
- Meets ASME B16.20 standards, ensuring consistent quality and reliable performance.
- Comes with dedicated technical support and after‑sales service for seamless integration.
FAQ
What pipe size does this gasket fit?
The gasket is designed for a 2.125″ ID, which corresponds to a 1‑1/2″ nominal pipe size. It is suitable for both standard and raised face flanges within this dimension range.
Can this gasket be used in high‑temperature environments?
Yes, the gasket is rated for temperatures up to 600 °F. The combination of stainless steel windings and graphite filler allows it to maintain sealing performance even under extreme thermal conditions.
How should the gasket be installed to achieve optimal sealing?
Ensure that flange faces are clean and free of damage. Fully compress the gasket to the guide ring, use the correct bolt material for the operating conditions, and apply bolt lubrication to promote even torque distribution.
What is the pressure rating of this gasket?
The gasket is rated for a pressure class of 150 psi, making it suitable for a wide range of hydraulic and pneumatic applications that operate within this pressure envelope.
Is there a warranty or guarantee for this product?
All Sterling Seal gaskets come with a limited warranty that covers material defects and manufacturing errors. For detailed warranty terms, please contact our customer service team.
Reviews
There are no reviews yet.
