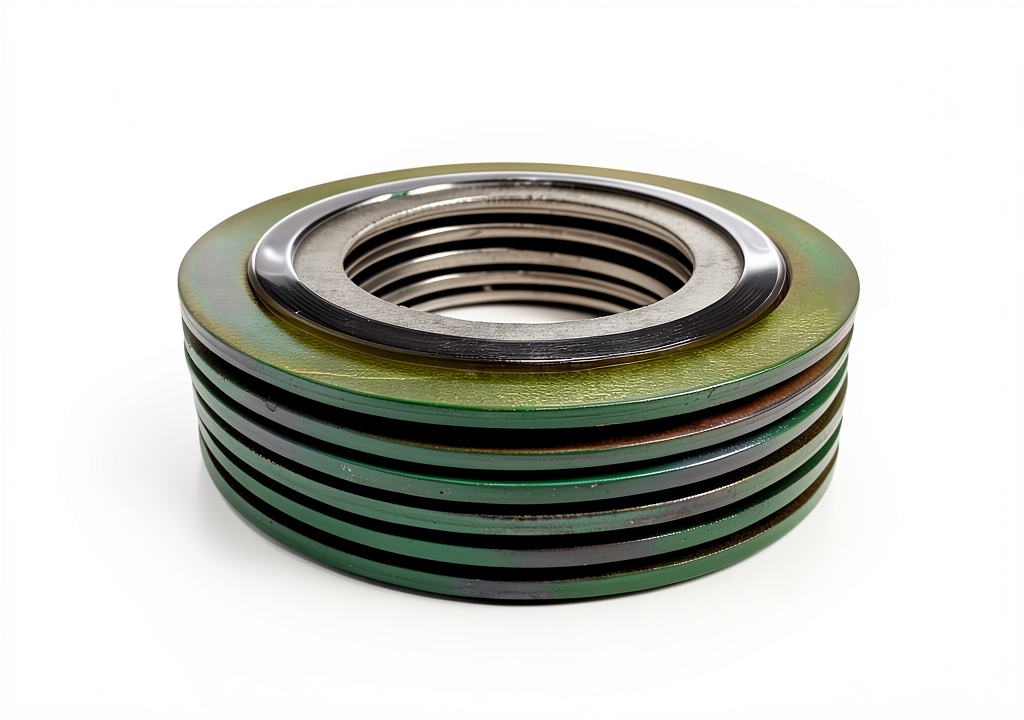

Spiral Wound Gasket Sterling Seal and Supply 2in x 150lb 316SS Ring 6

Description

Product Overview

The Sterling Seal & Supply SSS 9000IR2316GR150X6 spiral wound gasket combines a 316 stainless steel inner ring with a flexible graphite filler to deliver a durable, high‑performance sealing solution. Designed for 2‑inch, 150 lb class flanges, the gasket conforms to ASME B16.20 specifications for use with ASME B16.5 flanges. Its construction features a precisely centered inner ring that provides radial strength, limits compression, and ensures consistent alignment during installation. The flexible graphite core accommodates thermal expansion while maintaining a tight seal across a temperature range of –150°F to 850°F. Each pack contains six gaskets, offering a convenient bulk supply for routine maintenance or large‑scale projects.

Usage

This gasket is ideal for hydraulic and pneumatic systems where reliable sealing under high pressure and extreme temperatures is critical. It performs exceptionally in oil‑based, water‑based, and chemical environments, making it suitable for industrial machinery, power generation equipment, and heavy‑duty pumps. Install the gasket between the flange faces, ensuring the inner ring aligns with the centering groove to prevent misalignment. The flexible graphite filler allows for easy removal and re‑installation without compromising seal integrity, reducing downtime during service intervals. Recommended for applications ranging from fluid power circuits to high‑temperature exhaust systems, the gasket provides a versatile solution for a broad spectrum of engineering challenges.

Why Choose Us

Choosing Sterling Seal & Supply means selecting a product backed by decades of expertise in sealing technology. Our spiral wound gaskets undergo rigorous quality control, including dimensional verification and material testing, to guarantee consistent performance. The 316 stainless steel inner ring offers superior corrosion resistance, while the graphite filler delivers unmatched flexibility and thermal stability. Each gasket is manufactured to exacting tolerances, ensuring a perfect fit for the specified flange size and pressure class. Additionally, our customer support team provides technical assistance, helping engineers select the right gasket and offering guidance throughout the installation process.

Key Features

• 316 stainless steel inner ring provides excellent corrosion resistance and strength.
• Flexible graphite filler adapts to temperature extremes, maintaining a reliable seal.
• Designed for 2‑inch, 150 lb class flanges, meeting ASME B16.20 standards.
• Easy to install and remove, reducing maintenance time and cost.
• Dedicated technical support and after‑sales service for seamless project execution.

FAQ

What pressure rating does this gasket support?

The gasket is rated for Class 150 (150 lb) pressure applications, suitable for most hydraulic and pneumatic systems operating within this class.

Can this gasket be used with corrosive fluids?

Yes, the 316 stainless steel inner ring offers high corrosion resistance, and the graphite filler is compatible with many aggressive chemicals, making the gasket suitable for a variety of fluid environments.

What is the maximum operating temperature?

The gasket can safely operate from –150°F up to 850°F, covering a wide range of industrial temperature requirements.

How many gaskets are included in the package?

Each package contains six individual spiral wound gaskets, providing a convenient bulk quantity for multiple installations or replacements.

Is special tooling required for installation?

No special tools are needed. The gasket is designed for straightforward hand installation, with the centering ring ensuring proper alignment on the flange face.
