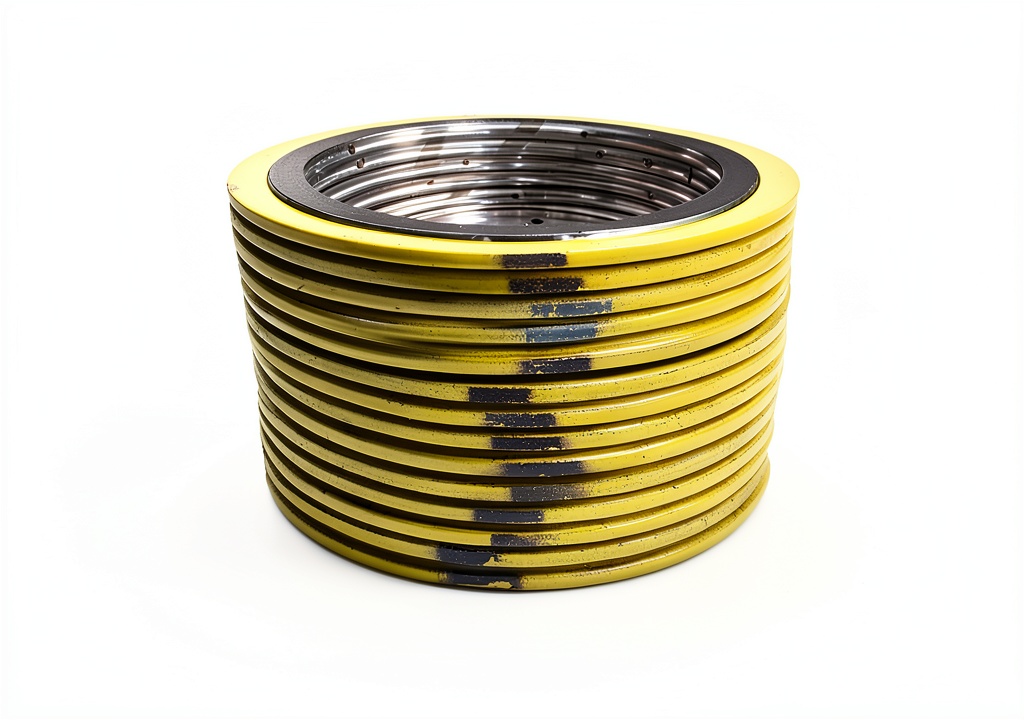

Sterling Seal Spiral Wound Gasket SSI90003304GR150X12 3″ Pipe 150#

Description

Product Overview

The Sterling Seal SSI90003304GR150X12 spiral wound gasket is engineered for demanding industrial environments where reliability and durability are paramount. Constructed with 304 stainless steel windings, a graphite filler core, and a carbon steel outer ring, this gasket combines the corrosion resistance of stainless steel with the compressibility of graphite to maintain a tight seal under fluctuating pressures and temperatures. Its dimensions—4″ ID, 5.375″ OD, and a 3″ pipe compatibility—make it an ideal fit for standard 3″ pipe flanges, while the pressure class of 150 psi ensures performance well within the specifications of most hydraulic and plumbing systems. The gasket complies with ASME B16.20 identification markings, guaranteeing traceability and adherence to industry standards. Each pack contains twelve gaskets, providing ample inventory for maintenance cycles and large‑scale projects.

Usage

Designed for a broad range of applications, this spiral wound gasket excels in high‑temperature, high‑pressure scenarios such as hydraulic power units, pneumatic compressors, heat exchangers, boiler hand holes, and manholes. Its robust construction allows it to withstand temperatures up to 600 °F, making it suitable for steam and hot‑oil services. The gasket’s flexible filler accommodates slight flange misalignments, reducing the risk of inward buckling and turbulent flow that can lead to efficiency losses. Installation is straightforward: ensure flange faces are clean, apply appropriate bolt lubrication, and compress the gasket fully against its guide ring to achieve optimal sealing performance. The gasket’s design also minimizes flange erosion, extending the service life of both the gasket and the mating components.

Why Choose Us

When selecting a sealing solution, quality and consistency are critical. Sterling Seal & Supply has a long‑standing reputation for delivering precision‑engineered gaskets that meet rigorous manufacturing tolerances. Each gasket undergoes thorough inspection to verify dimensional accuracy, material integrity, and compliance with ASME standards. Our commitment to customer satisfaction includes responsive technical support, detailed installation guidance, and a reliable supply chain that ensures you receive the correct part when you need it. Additionally, the pack of twelve provides cost‑effective inventory management, reducing downtime during routine maintenance or unexpected repairs.

Key Features

• Premium 304 stainless steel windings deliver superior corrosion resistance and long‑term durability.
• Graphite filler core provides excellent compressibility for a tight seal even under variable pressure.
• Carbon steel outer ring adds structural strength, preventing flange deformation and erosion.
• Designed for 3″ pipe flanges with a pressure rating of 150 psi, suitable for high‑temperature, high‑pressure applications.
• Comprehensive after‑sales support, including technical assistance, installation tips, and fast replacement parts.

FAQ

What size flange is this gasket compatible with?

The gasket is sized for a 4″ inner diameter and 5.375″ outer diameter, making it compatible with standard 3″ pipe flanges.

Can this gasket be used in steam applications?

Yes, the gasket’s 304 stainless steel construction and graphite filler allow it to operate safely in steam environments up to 600 °F.

How many gaskets are included in each pack?

Each pack contains twelve individual gaskets, providing ample supply for multiple installations or replacement cycles.

Do I need a special tool to install this gasket?

No special tools are required. Ensure the flange faces are clean, apply appropriate bolt lubrication, and fully compress the gasket against its guide ring during installation.

What warranty does Sterling Seal offer?

Sterling Seal provides a limited warranty covering material defects and manufacturing errors, backed by responsive technical support to address any performance concerns.
